Van Roof Racks Explained: Why Vans Use Four Bars, Not Two

Quick answer: Most vans use four roof bars rather than two because van roofs are long, flat and carry loads that need support at more than two points. A four-bar set spreads the load across the full roof length, prevents long items such as ladders and pipes from flexing, and keeps each bar within its individual weight rating.

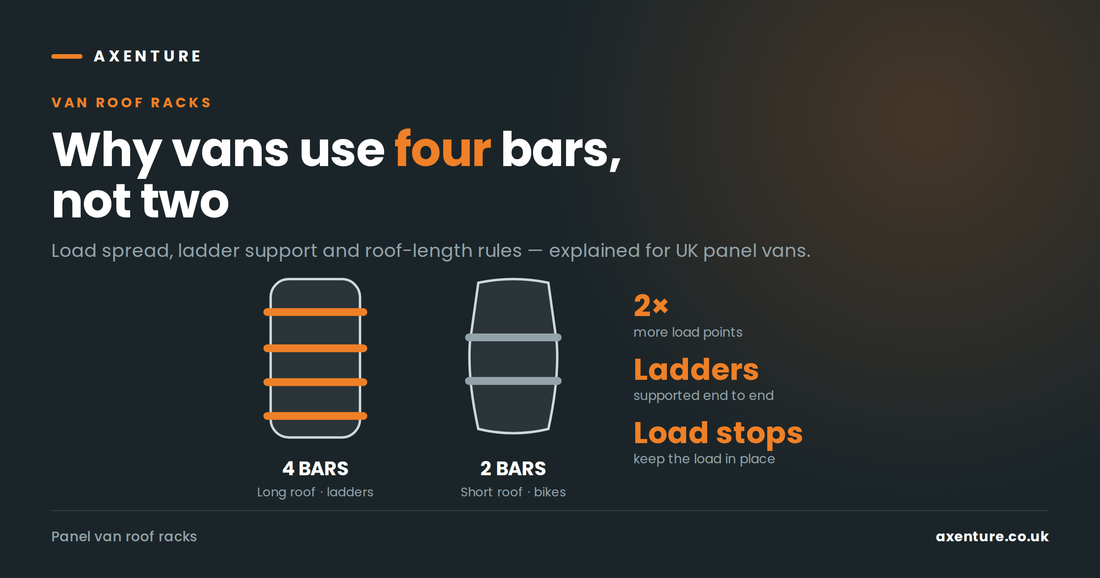

Why do vans need four bars when cars need two?

A car roof is short and curved, and the loads carried on it — a roof box, two bikes, a set of skis — are compact and sit centrally. Two bars set roughly a metre apart support that load adequately.

A van roof is typically twice as long and almost flat. The loads are different too: ladders, scaffold boards, lengths of conduit, pipe and timber. These are long, heavy and unevenly distributed.

Supporting a 3-metre ladder on two bars leaves long unsupported overhangs at both ends. The ladder flexes, the load shifts under braking, and the clamping force concentrates on a small area. Four bars reduce the unsupported span, distribute the weight and keep the load flat.

Which vans use four-bar roof racks?

Axenture lists 167 four-bar roof rack sets across the UK's common van and van-derived models. The best-covered vehicles are:

• Volkswagen Caddy — 17 sets, including Caddy Maxi and Caddy Combi, covering 2003 to 2023
• Renault Kangoo — 12 sets, including Kangoo Express Panel Van and Kangoo 5D, covering 1997 to 2021
• Fiat Fiorino and Qubo — 8 sets, covering 2007 to 2024
• Ford Tourneo Courier — 7 sets
• Volkswagen T5 and T6 Transporter — 11 sets combined
• Mercedes Vito — 13 sets across W638, W639 and W447 generations, covering 1996 to the present
• Citroën Jumpy and Dispatch / SpaceTourer — 7 sets
• Vauxhall and Opel Combo — 10 sets across Combo C, D and E
• Peugeot Partner and Partner Tepee — 4 sets
• Citroën Berlingo Multispace — 4 sets

Coverage across the van range spans model years from 1991 to 2026.

What roof type do vans use?

Most panel vans and van-derived MPVs use raised roof rails, and a smaller number use bare roofs with door-frame clamps. Raised rails are preferred by manufacturers because they are strong, cheap to produce and unaffected by the flat roof profile.

Some van roof racks mount to gutters or to factory-fitted threaded points along the roof edge instead. These behave like fixed points on a car: the load transfers directly into the body shell.

Check which type your van has before ordering. Panel van and passenger variants of the same model frequently differ — a Kangoo Express panel van and a Kangoo 5D passenger version can have different roof configurations in the same model year.

What can four-bar van racks carry?

Axenture van racks are rated at 75 kg dynamic load while driving and up to 150 kg static load when parked. The dynamic figure includes the weight of the bars themselves.

Typical loads within that limit include a double extension ladder, a set of scaffold boards, roofing sheets, kayaks or a cargo basket. Four-bar sets are also the standard base for a roof tent, where the static rating matters more than the dynamic one.

The van's own roof load limit is stated in the handbook and is often between 50 kg and 100 kg. Where the vehicle limit is lower than the bar rating, the vehicle limit applies.

Do I need load stops or ladder clamps?

Load stops are adjustable end blocks that bolt into the bar's T-track and stop a load sliding sideways. They are essential for anything cylindrical — pipes, poles, rolled materials — and useful for ladders.

Ladder clamps are lockable brackets that hold a ladder against the bar and accept a padlock. They serve two purposes: securing the ladder against movement, and deterring theft from a parked van.

Both accessories require a bar with a T-track channel. Confirm your bars have this channel before ordering, as smooth-profile bars will not accept T-track fittings.

How is a four-bar rack fitted?

1. Identify the roof type: raised rails, gutter, or threaded roof points.
2. Position the front bar at the manufacturer's stated distance behind the windscreen.
3. Space the remaining three bars evenly along the roof, keeping the rear bar clear of the door opening arc.
4. Tighten each clamp to the specified torque — over-tightening deforms rails, under-tightening allows movement.
5. Load the vehicle, drive a short distance, then re-check every clamp.

Re-check the clamps after the first 50 miles and periodically thereafter. Vibration loosens fixings over time, particularly on flat van roofs.

Frequently asked questions

Can I use two bars instead of four on a van? For short, compact loads within the weight limit, two bars may be adequate. For ladders, boards or anything longer than the bar spacing allows, four bars are the correct configuration.

Does a roof rack affect fuel consumption? Yes. A four-bar rack adds aerodynamic drag, with the effect increasing at motorway speed. Removing the rack when not in use recovers most of the loss.

Are van roof racks legal with an overhanging load? Loads projecting beyond the vehicle are subject to UK marking and notification rules depending on the length of the overhang. Check current DVSA guidance before carrying long loads.

Will a rack fit a van with a high roof? High-roof variants often need a different bar or a roof ladder for access. Confirm the listing states your roof height.

Do I need a rear roller? A roller mounted at the rear of the rack makes loading ladders single-handed considerably easier and reduces the chance of scratching the roof. It is optional but widely used by trades.

Van coverage summary
