Raised Rails, Flush Rails, Fixed Points or Bare Roof? UK Roof Type Guide

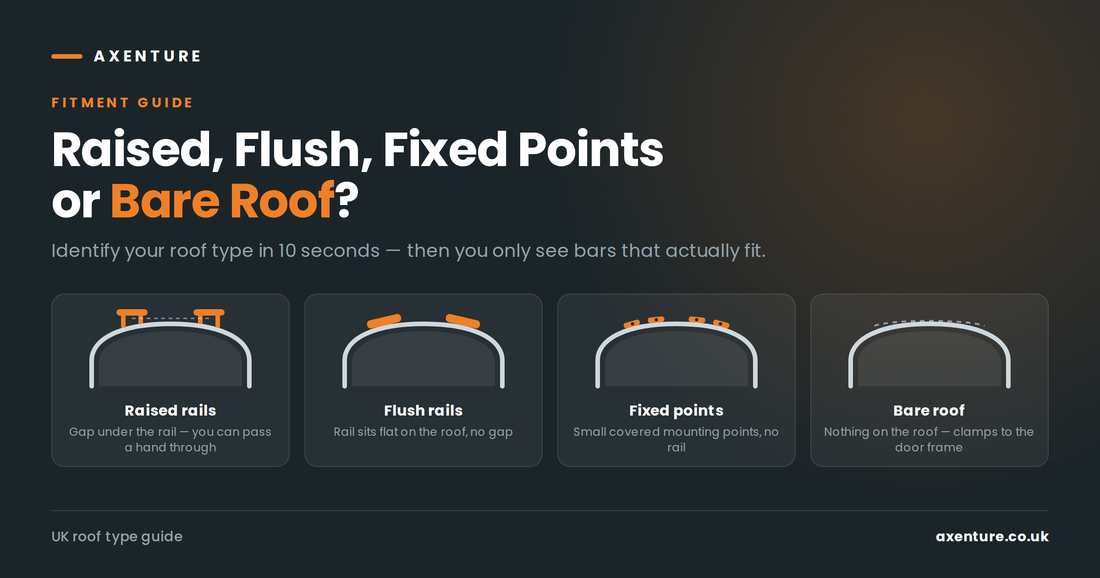

Quick answer: UK cars use four roof mounting types — raised rails, flush rails, fixed points and bare roofs. Raised rails have a visible gap between the rail and the roof. Flush rails sit directly against the roof with no gap. Fixed points are covered threaded mounts hidden under plastic flaps. A bare roof has neither rails nor visible mounts. Each type needs a different roof bar; they are not interchangeable.

Why does the roof type matter more than the car model?

A roof bar attaches to the roof, not to the car. Two identical cars of the same model year can need completely different bars if one was specified with rails and the other was not.

This is the single most common cause of returned roof bars in the UK. Buyers search for their car by name, order the first matching result, and find the clamps do not close around their roof.

Across the Axenture catalogue of 4,786 roof and accessory products covering 64 vehicle makes and 1,277 model variants, the distribution is: 2,615 products for raised rails, 1,335 for flush rails, 304 for bare roofs and 13 for fixed points. Raised and flush rails together account for 92% of fitments.

What are raised roof rails?

Raised roof rails run front to back along the roof with a visible gap underneath. You can pass your hand or fingers between the rail and the roof panel. They are the oldest and most common design, standard on estates, older SUVs and most vans.

Raised rails are the easiest type to fit. The bar clamps wrap around the rail from above and below and tighten with a bolt. No vehicle-specific bracket is required, which is why one raised-rail bar design covers many models.

Typical vehicles with raised rails: Suzuki Grand Vitara 1998–2004, Mitsubishi Pajero 2007–2022, Toyota Land Cruiser Prado 120 2002–2008, Vauxhall Vivaro 2001–2019, Ford Kuga 2013–2018.

Test: if you can slide a finger under the rail at its midpoint, it is a raised rail.

What are flush roof rails?

Flush roof rails sit directly on the roof with no gap underneath. They are bonded or bolted flat to the roof line, usually for aerodynamics and appearance. Most SUVs and crossovers built after roughly 2015 use this design.

Flush rails need a bar with a clamp that grips the outer edge of the rail and pulls upward against a bracket shaped for that vehicle. Because the gripping surface varies by model, flush-rail bars are more vehicle-specific than raised-rail bars.

Typical vehicles with flush rails: Chery Tiggo 8 2018 onwards, Omoda 5 2024 onwards, Jaecoo 7 2024 onwards, BMW X3 F25 2010–2017, Ford Edge 2015 onwards, Honda CR-V 2020–2025, Peugeot 5008 T87 2017 onwards.

Test: if the rail is flat against the roof and you cannot pass anything underneath it, it is a flush rail.

What are fixed points?

Fixed points are threaded mounting holes built into the roof and hidden under removable plastic covers or rubber flaps. The roof looks bare until the covers are lifted. The bar bolts directly into the vehicle structure.

Fixed-point systems are the strongest of the four because the load goes straight into the body shell rather than into a rail. They are common on German saloons and some estates, including several Audi and BMW models.

Test: run a finger along the roof seam or gutter line. Small rectangular plastic covers, usually two per side, indicate fixed points. Lift one carefully with a fingernail to confirm a threaded hole underneath.

What is a bare roof?

A bare roof has no rails and no fixed points — the roof is a smooth painted panel with a door frame around it. Bars for bare roofs use clamps that hook into the door aperture and tighten against a rubber pad on the roof edge.

Hatchbacks, saloons and entry-level trims usually have bare roofs. Because the clamp shape must match the door frame profile, these bars are the most vehicle-specific of all four types.

Typical vehicles with bare roofs: Volkswagen Golf VII 2012–2019, Volkswagen Passat B8 2014–2019, Volvo S90 2016 onwards, Peugeot 208 2015–2019, Vauxhall Corsa F 2019 onwards, Kia EV6 2021 onwards.

Test: if there is nothing on the roof at all and no plastic covers along the seam, it is a bare roof.

How do I check my roof type in under a minute?

1. Look at the roof from the side, at eye level.
2. If you see two rails running front to back, try to slide a finger under one. Gap means raised. No gap means flush.
3. If you see no rails, look along the roof seam for small plastic covers. Covers present means fixed points.
4. No rails and no covers means bare roof.

Do not rely on the brochure or a previous owner's description. Rails were frequently an optional extra, so the same model can appear with any of the four types.

What weight can roof bars carry?

Roof bars have two separate ratings: dynamic load while driving and static load while parked. Axenture aluminium bars are rated to 75 kg (165 lb) dynamic and 150 kg static, with roof-tent-rated sets reaching 200 kg static.

The dynamic figure is the one that matters on the road, and it includes the weight of the bars and any carrier fitted to them. The static figure applies only when the vehicle is stationary, which is why a roof tent can hold two sleeping adults on bars rated at 75 kg dynamic.

The vehicle's own roof load limit also applies and is often lower than the bar rating. Check the owner's handbook and use whichever figure is smaller.

Frequently asked questions

Can I fit raised-rail bars to flush rails? No. A raised-rail clamp needs to wrap under the rail. On a flush rail there is nothing to wrap around, so the clamp cannot close.

Can I fit flush-rail bars to a bare roof? No. Flush-rail bars grip a rail. A bare roof has no rail to grip, and door-frame clamps are a different mechanism entirely.

My car has rails but they run side to side, not front to back. Those are the cross bars themselves, already fitted. You need accessories, not new bars.

Do fixed-point bars damage the roof? No, if fitted to the correct torque. The threaded points are factory-installed for exactly this purpose.

Are roof bars legal in the UK? Yes, provided the load is secure, does not obscure lights or number plates, and stays within the vehicle's roof load limit. Loads projecting beyond the vehicle have separate marking requirements.

Summary table

Axenture lists every roof bar set by roof type as well as by vehicle, so the fitment is stated on the product page before you order.
